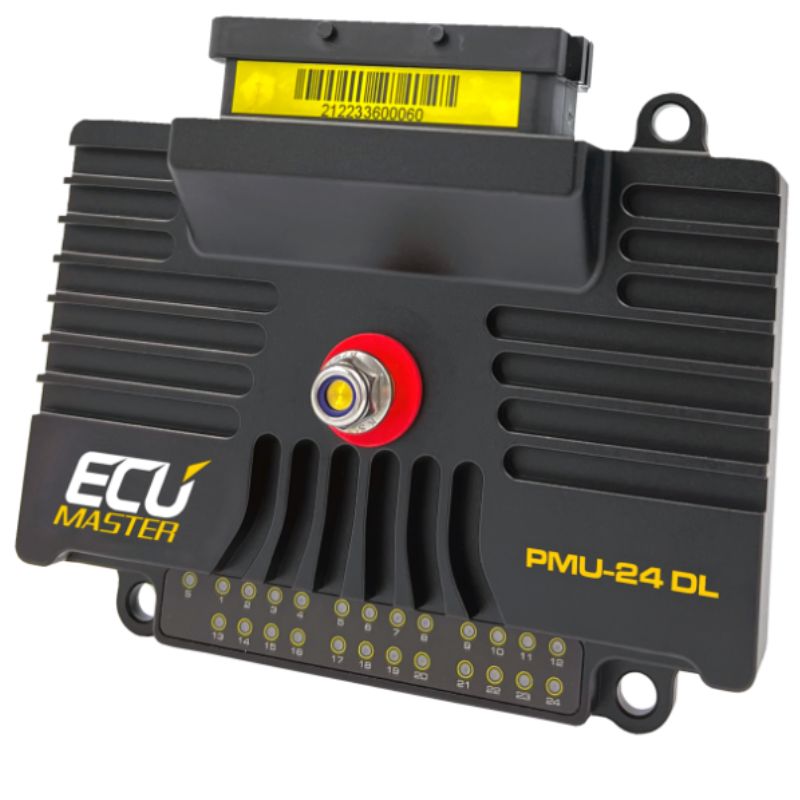

ECU Master PMU 24

£1,299.00 excl. VAT

PMU-24 DL is a new and enhanced Power Management Unit featuring all the benefits of the PMU-16, now with 24 high-side outputs and internal data logging memory as a standard. All output states, voltage, and current information are transmitted via CAN bus to a dash display to inform the driver of potential problems. All logged data can be downloaded from the device for later analysis.

ECU Master PMU 24

170 Amps total continuous current.

Operating voltage: 6-22V (immunity to transients according to ISO 7637)
Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
10x 25 Amps high-side power outputs (PWM capable).
6x 15 Amps high-side power outputs.
8x 7 Amps high-side power outputs.
Up to 16 analog inputs.
24x tricolor LED for each power output state.
2x CAN 2.0 A/B.
256 MB data logger memory.
Up to 500 Hz logging frequency.
Real-time clock for data stamping.
3D accelerometer/gyroscope.

As always with Ecumaster products mating connectors and terminals
are included at no extra cost, which represents substantial savings
and saves ordering separate or unnecessary components.

Please note for communication to the PMU a CAN interface is required. Peak-Systems, Kvazer or Ecumaster are supported.



Category: Tags: ,

Description

Description

PMU-24 DL is a new and enhanced Power Management Unit featuring all the benefits of the PMU-16, now with 24 high-side outputs and internal data logging memory as a standard. All output states, voltage, and current information are transmitted via CAN bus to a dash display to inform the driver of potential problems. All logged data can be downloaded from the device for later analysis.



170 Amps total continuous current.
Operating voltage: 6-22V (immunity to transients according to ISO 7637)
Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
10x 25 Amps high-side power outputs (PWM capable).
6x 15 Amps high-side power outputs.
8x 7 Amps high-side power outputs.
Up to 16 analog inputs.
24x tricolor LED for each power output state.
2x CAN 2.0 A/B.
256 MB data logger memory.
Up to 500 Hz logging frequency.
Real-time clock for data stamping.
3D accelerometer/gyroscope.

As always with Ecumaster products mating connectors and terminals
are included at no extra cost, which represents substantial savings
and saves ordering separate or unnecessary components.

Please note for communication to the PMU a CAN interface is required. Peak-Systems, Kvazer or Ecumaster are supported.
